72 × 60airplane hangar
A private hangar for a Cessna 152 and a Piper Warrior with a 54 ft bi-fold door, a maintenance strip along the back wall, a pilots’ lounge and restroom, and a covered patio for the hangar flying that happens after.A finished design you can open, change and price: 4,320 sq ft, 16′ eaves, a 3/12 roof. Every picture below is a path-traced render of this exact design file; outside, it stands in a real photographed yard.

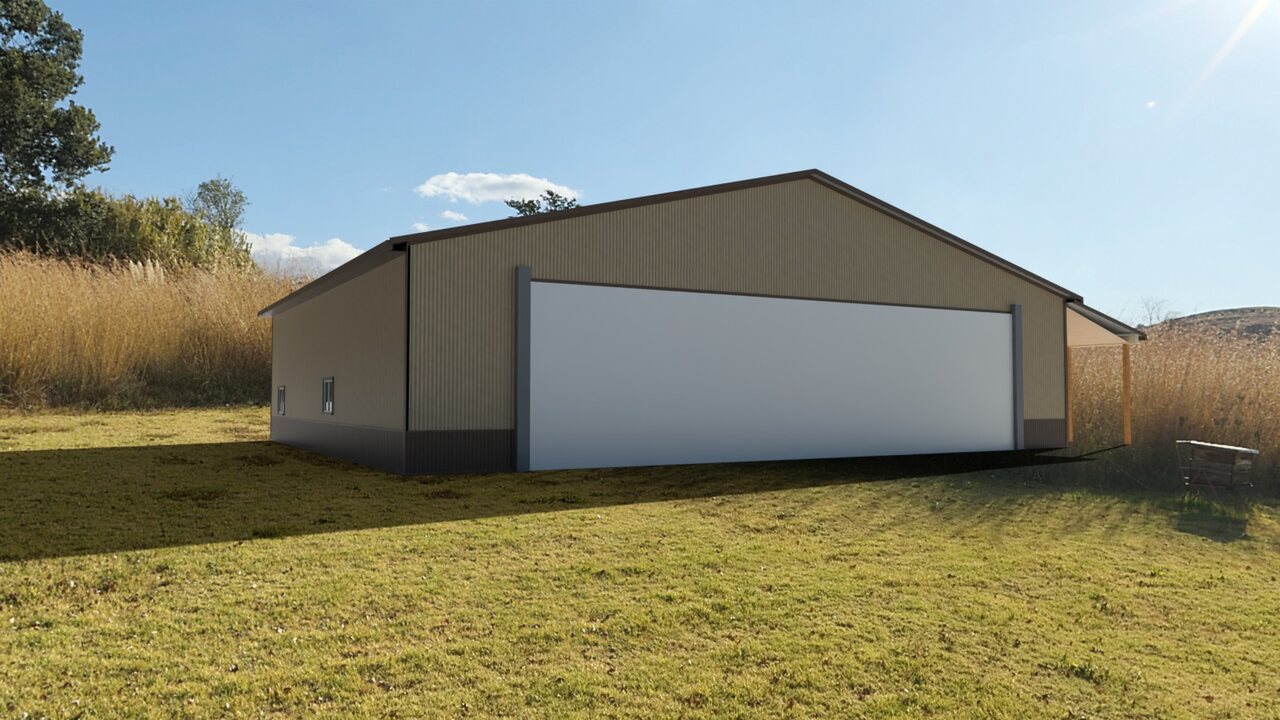

Exterior · real yard- Footprint72′ × 60′
- Eave height16′
- Roof3/12 pitch
- Openings8
- Feature54' bi-fold door
- FeaturePilots’ lounge
- FeatureRestroom
- FeaturePatio lean-to
Material list
| Frame | |
|---|---|
| Posts, 6×6 laminated | 714 ft of post |
| Trusses, 72 ft span, 3/12 | 648 ft of span |
| Purlins, 2×4 on edge | 2,605 lin ft |
| Wall girts, 2×4 flat | 2,377 lin ft |
| Splash board, treated 2×8 | 265 lin ft |
| Headers over wide openings, 2-ply 2×12 | 67 lin ft |
| Siding | |
| Walls · Ribbed steel, Tan | 4,049 sq ft |
| Wainscot · Steel, contrasting colour, Brown | 792 sq ft |
| Roof | |
| Roof steel · Brown | 4,794 sq ft |
| Trim | |
| Ridge cap · Brown | 63 lin ft |
| Eave and rake trim | 279 lin ft |
| Corner and base trim | 329 lin ft |
| Lean-to | |
| Lean-to, right side, 12 ft deep | 807 sq ft |
| Foundation | |
| Concrete slab, 4 in, 4,000 psi, fiber, power trowel | 4,321 sq ft |
| Thickened edge, 12 in deep | 265 lin ft |
| Post piers, 16 in × 48 in | 34 each |
| Site | |
| Apron, concrete | 743 sq ft |
| Drive, gravel | 2,871 sq ft |
| Inside | |
| Interior, white steel liner panel | 4,049 sq ft |
| Interior, steel liner ceiling | 4,321 sq ft |
| Interior partition walls, 2×4 studs | 47 lin ft |
| Openings | |
| Hangar door · bi-fold, 54′ × 14′ | 756 sq ft of door |
| Door with glass, 3′ × 6′ 8″ | 1 each |
| Casement window, 4′ × 3′ | 4 each |
Questions
How much does a 72 × 60 airplane hangar cost?
This design comes to about $132,195, or $31 per square foot, at standard-quality Midwest prices, each one sourced (Home Depot, Midwest post-frame suppliers and 2026 cost guides) and checked on October 16, 2026: the frame, steel, doors and trim as materials, and the slab, thickened edge, post piers, apron and drive installed, the way concrete is quoted. Erection labour is optional, and utilities, equipment and furnishings are never priced. Open the design to choose a budget, standard or premium build, step any part up or down, set your region, and see where every price came from.
What materials does a 72 × 60 airplane hangar need?
The full take-off is above: posts, trusses, purlins and girts, steel for the walls and roof, trim, the slab and every door and window, counted from the design with common post-frame rules.
Can I change the design?
Yes. Open it in the designer and change the size, the 72′ × 60′ footprint, the eave height, the steel colours, the doors and everything inside. The renders, the drawing set, the material list and the price follow every change.
Can I see it on my own land?
Yes. Make a share link and open it on your phone to place the building in your yard at true size, then walk around it.
