50 × 80shop house with living quarters

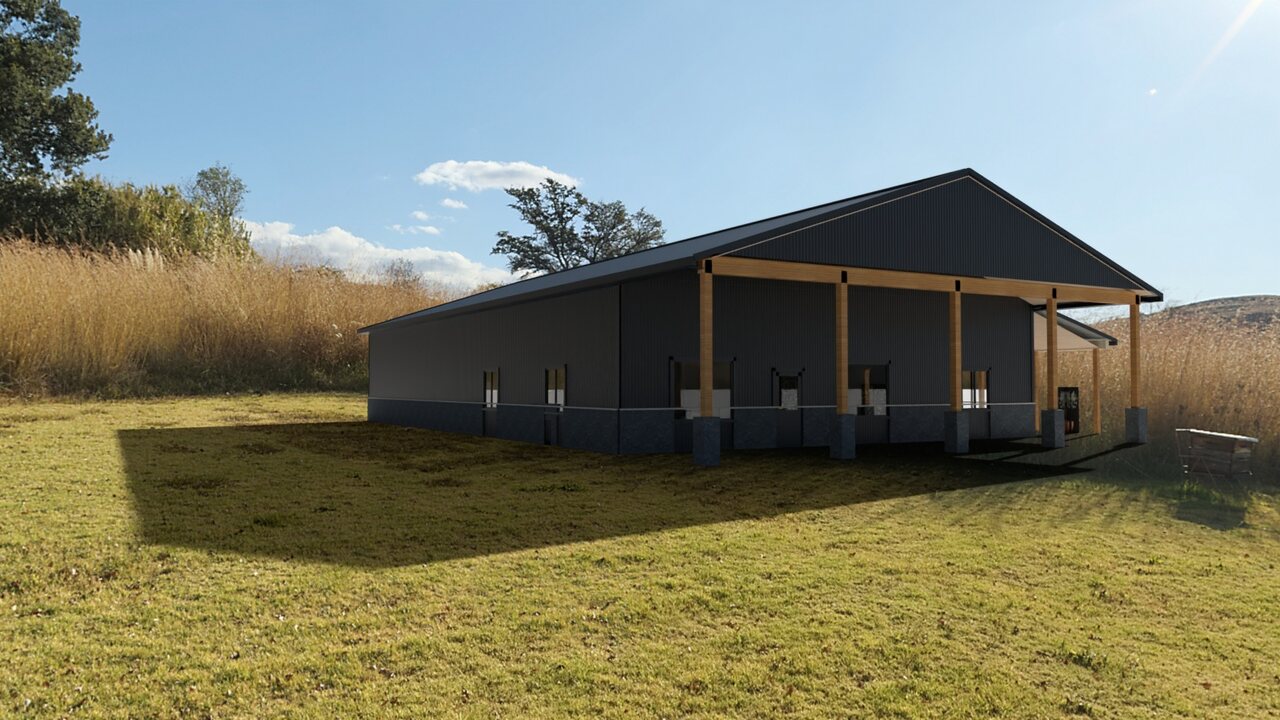

Half shop, half home under one roof: a lift bay and benches at the back, and a great room with a kitchen island, a bedroom and a bath at the front, with a deep porch and a covered patio.A finished design you can open, change and price: 4,000 sq ft, 14′ eaves, a 4/12 roof. Every picture below is a path-traced render of this exact design file; outside, it stands in a real photographed yard.
Exterior · real yard- Footprint50′ × 80′
- Eave height14′
- Roof4/12 pitch
- Openings13
- FeatureGreat room
- FeatureKitchen island
- FeatureBedroom and bath
- FeatureLift bay
Material list
| Frame | |
|---|---|
| Posts, 6×6 laminated | 576 ft of post |
| Trusses, 50 ft span, 4/12 | 550 ft of span |
| Purlins, 2×4 on edge | 2,821 lin ft |
| Wall girts, 2×4 flat | 1,820 lin ft |
| Splash board, treated 2×8 | 260 lin ft |
| Headers over wide openings, 2-ply 2×12 | 70 lin ft |
| Siding | |
| Walls · Ribbed steel, Black | 3,561 sq ft |
| Wainscot · Ledgestone | 911 sq ft |
| Roof | |
| Roof steel · Black | 5,252 sq ft |
| Trim | |
| Ridge cap · Black | 95 lin ft |
| Eave and rake trim | 300 lin ft |
| Corner and base trim | 316 lin ft |
| Lean-to | |
| Lean-to, right side, 12 ft deep | 1,067 sq ft |
| Porch | |
| Front porch, 12 ft deep | 4 post bay |
| Foundation | |
| Concrete slab, 4 in, 4,000 psi, fiber, power trowel | 4,000 sq ft |
| Thickened edge, 12 in deep | 260 lin ft |
| Post piers, 16 in × 48 in | 32 each |
| Inside | |
| Interior, white steel liner panel | 3,561 sq ft |
| Interior, steel liner ceiling | 4,000 sq ft |
| Interior partition walls, 2×4 studs | 108 lin ft |
| Openings | |
| Garage door · sectional, 12′ × 12′ | 288 sq ft of door |
| Door, 3′ × 6′ 8″ | 1 each |
| Picture window, 6′ × 5′ | 2 each |
| Door with glass, 3′ × 6′ 8″ | 1 each |
| Casement window, 4′ × 4′ | 3 each |
| Sliding glass doors, 8′ × 7′ 6″ | 1 each |
Questions
How much does a 50 × 80 shop house with living quarters cost?
This design comes to about $109,807, or $27 per square foot, at standard-quality Midwest prices, each one sourced (Home Depot, Midwest post-frame suppliers and 2026 cost guides) and checked on October 16, 2026: the frame, steel, doors and trim as materials, and the slab, thickened edge, post piers, apron and drive installed, the way concrete is quoted. Erection labour is optional, and utilities, equipment and furnishings are never priced. Open the design to choose a budget, standard or premium build, step any part up or down, set your region, and see where every price came from.
What materials does a 50 × 80 shop house with living quarters need?
The full take-off is above: posts, trusses, purlins and girts, steel for the walls and roof, trim, the slab and every door and window, counted from the design with common post-frame rules.
Can I change the design?
Yes. Open it in the designer and change the size, the 50′ × 80′ footprint, the eave height, the steel colours, the doors and everything inside. The renders, the drawing set, the material list and the price follow every change.
Can I see it on my own land?
Yes. Make a share link and open it on your phone to place the building in your yard at true size, then walk around it.
