30 × 40woodworking shop
A classic red barn with white trim, a cupola and a front porch, laid out as a full woodshop: cabinet saw with outfeed, jointer, planer, bandsaw, router table, a mitre wall, lumber storage and cyclone dust collection.A finished design you can open, change and price: 1,200 sq ft, 10′ eaves, a 6/12 roof. Every picture below is a path-traced render of this exact design file; outside, it stands in a real photographed yard.

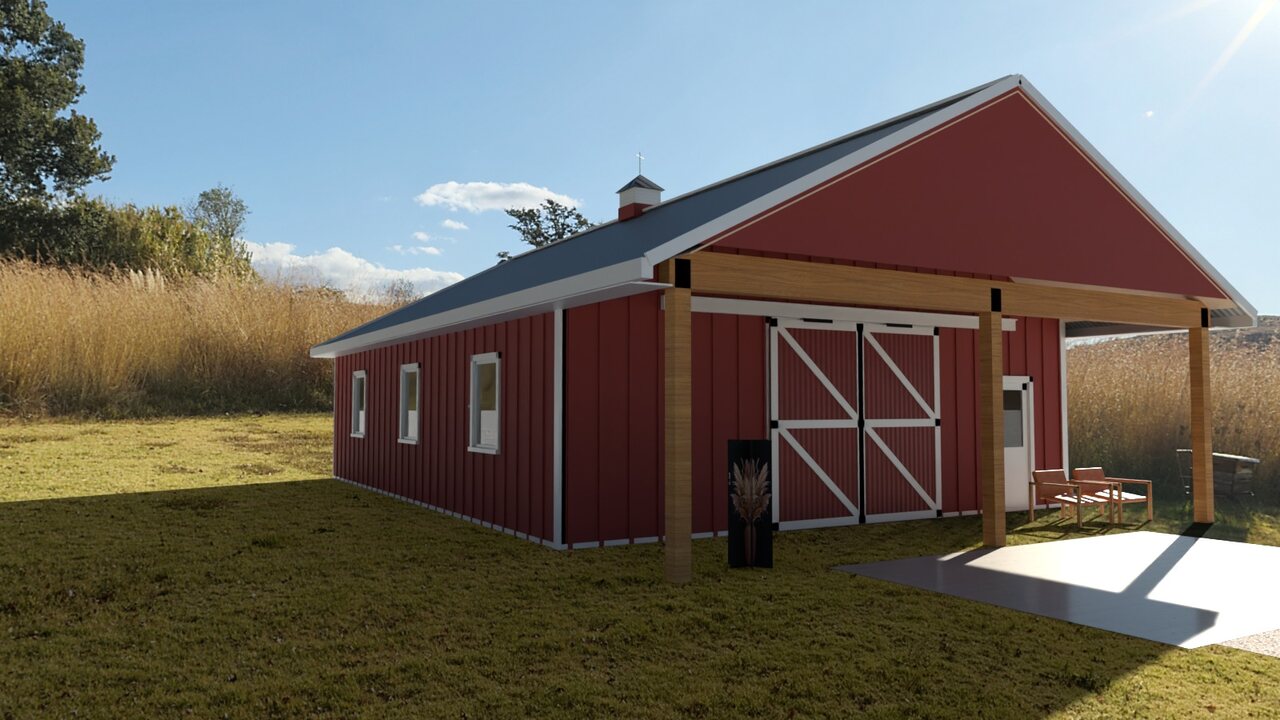

Exterior · real yard- Footprint30′ × 40′
- Eave height10′
- Roof6/12 pitch
- Openings9
- FeatureBoard and batten
- FeatureFront porch
- FeatureCupola
- FeatureDust collection
Material list
| Frame | |
|---|---|
| Posts, 6×6 laminated | 252 ft of post |
| Trusses, 30 ft span, 6/12 | 180 ft of span |
| Purlins, 2×4 on edge | 1,100 lin ft |
| Wall girts, 2×4 flat | 700 lin ft |
| Splash board, treated 2×8 | 140 lin ft |
| Headers over wide openings, 2-ply 2×12 | 33 lin ft |
| Siding | |
| Walls · Board and batten, painted, Barn red | 1,432 sq ft |
| Roof | |
| Roof steel · Black | 1,845 sq ft |
| Cupolas with weathervane | 1 each |
| Trim | |
| Ridge cap · Bright white | 50 lin ft |
| Eave and rake trim | 174 lin ft |
| Corner and base trim | 180 lin ft |
| Porch | |
| Front porch, 8 ft deep | 3 post bay |
| Foundation | |
| Concrete slab, 4 in, 4,000 psi, fiber, power trowel | 1,200 sq ft |
| Thickened edge, 12 in deep | 140 lin ft |
| Post piers, 16 in × 48 in | 18 each |
| Site | |
| Apron, concrete | 215 sq ft |
| Drive, gravel | 945 sq ft |
| Inside | |
| Interior, knotty pine walls | 1,432 sq ft |
| Interior, steel liner ceiling | 1,200 sq ft |
| Openings | |
| Sliding barn door, 10′ × 9′ | 90 sq ft of door |
| Door with glass, 3′ × 6′ 8″ | 1 each |
| Casement window, 3′ × 4′ | 6 each |
| Casement window, 4′ × 3′ | 1 each |
Questions
How much does a 30 × 40 woodworking shop cost?
This design comes to about $46,006, or $38 per square foot, at standard-quality Midwest prices, each one sourced (Home Depot, Midwest post-frame suppliers and 2026 cost guides) and checked on October 16, 2026: the frame, steel, doors and trim as materials, and the slab, thickened edge, post piers, apron and drive installed, the way concrete is quoted. Erection labour is optional, and utilities, equipment and furnishings are never priced. Open the design to choose a budget, standard or premium build, step any part up or down, set your region, and see where every price came from.
What materials does a 30 × 40 woodworking shop need?
The full take-off is above: posts, trusses, purlins and girts, steel for the walls and roof, trim, the slab and every door and window, counted from the design with common post-frame rules.
Can I change the design?
Yes. Open it in the designer and change the size, the 30′ × 40′ footprint, the eave height, the steel colours, the doors and everything inside. The renders, the drawing set, the material list and the price follow every change.
Can I see it on my own land?
Yes. Make a share link and open it on your phone to place the building in your yard at true size, then walk around it.
